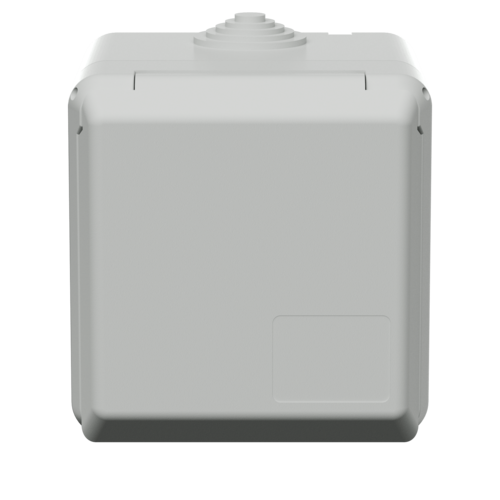

Cepex wall mounted socket 4101

Clock position
  • screw terminals
  • cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø
  • meeting DIN 18032 standards for ball rebound
  • Part no.4101
  • EAN4015394021384
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted socket 4101

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 284 g
Declaration of Conformity EAC

Appropriate accessories

Cepex wall mounted socket 4101

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted sockets SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A sockets
