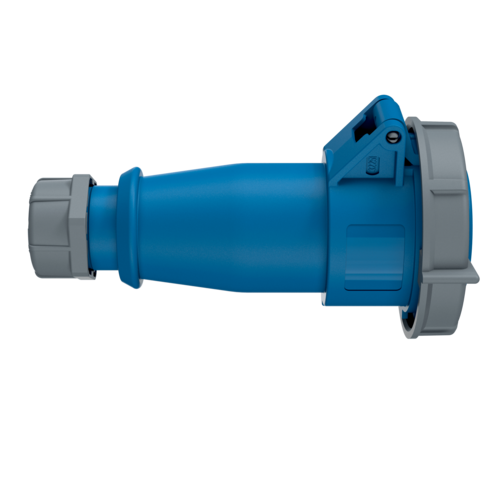

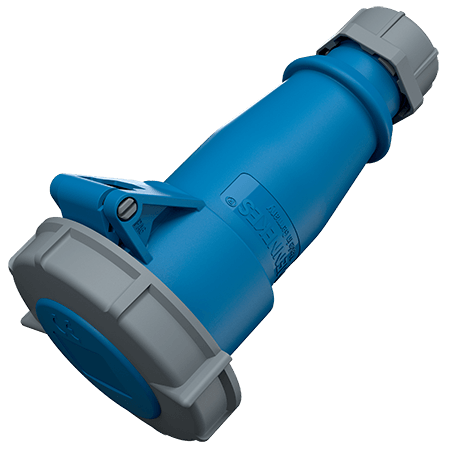

MENNEKES Connector AM-TOP® 540
MENNEKES Connector AM-TOP® 540 images3d

Connector AM-TOP® 540

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.540
  • EAN4015394003946
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP® 540

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 191 g
Certifications VDE

Directives

Connector AM-TOP® 540

Appropriate products

Connector AM-TOP® 540 with IP67

MENNEKES Panel mounted socket 1475

Panel mounted socket

Part no. 1475

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
MENNEKES Plug AM-TOP® 278

Plug AM-TOP®

Part no. 278

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted socket 9301

Wall mounted socket

Part no. 9301

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted socket DUOi 5612306G

Wall mounted socket DUOi

Part no. 5612306G

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
