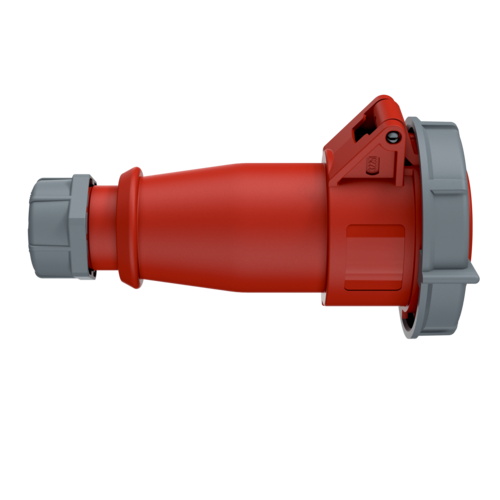

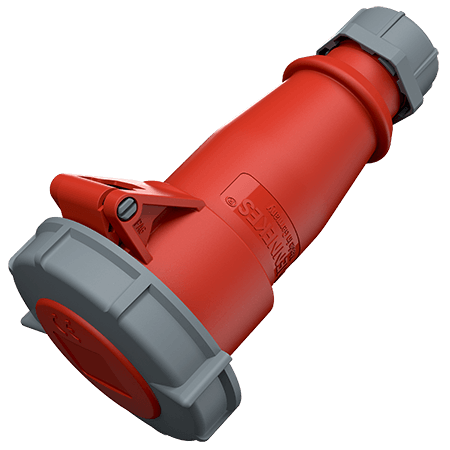

MENNEKES Connector AM-TOP® 544
MENNEKES Connector AM-TOP® 544 images3d

Connector AM-TOP® 544

Ampere 16 A 32 A
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.544
  • EAN4015394003991
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP® 544

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 222 g
Certifications CQC
VDE

Datasheets & Downloads

Connector AM-TOP® 544

Product infoConnector AM-TOP® 544 PDF, 104 KB
Manufacturer‘s declarationConnector AM-TOP® 544 PDF, 37 KB
CAD data STPConnector AM-TOP® 544 ZIP, 1 MB
CAD data 3D DWGConnector AM-TOP® 544 ZIP, 2 MB
Mounting instructionsConnector AM-TOP® 544 PDF, 2 MB
Dimensional drawing portraitConnector AM-TOP® 544 PNG, 71 KB
Dimensional drawing landscape formatConnector AM-TOP® 544 PNG, 71 KB

Directives

Connector AM-TOP® 544

REACh
RoHS
