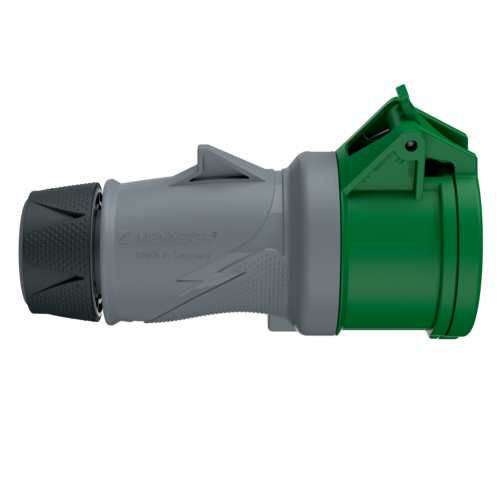

Connector PowerTOP® Xtra R with ErgoCONTACT 14567
Regardless of configuration and application area – the PowerTOP® Xtra connectors have compelling, tried and tested features: Ergonomic design, ease of installation, safe/straightforward connection and X-CONTACT® inside. PowerTOP® Xtra devices meet the requirements for the IP 54 protection class, meaning they are both splashproof and dustproof.
- screw connection technology ErgoCONTACT
- X-CONTACT®
- highly heat resistant contact carrier
- nickel plated contacts
- ergonomic enclosure design with nubbed grip areas
- rubberised cable gland with sealing
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Connector PowerTOP® Xtra R with ErgoCONTACT 14567
| Ampere | 16 A |
|---|---|
| Poles | 5 p |
| Voltage | 50-500 V |
| Clock position | 2 h |
| Hertz | 300-500 Hz |
| Connection technology | Screw terminals, ErgoCONTACT® |
| Contact |
nickel plated contacts highly heat resistant contact carrier X-CONTACT |
| Protection type | IP54 |
| Weight | 215 g |
| Certifications |
CB Zertifikat VDE EAC CQC |
