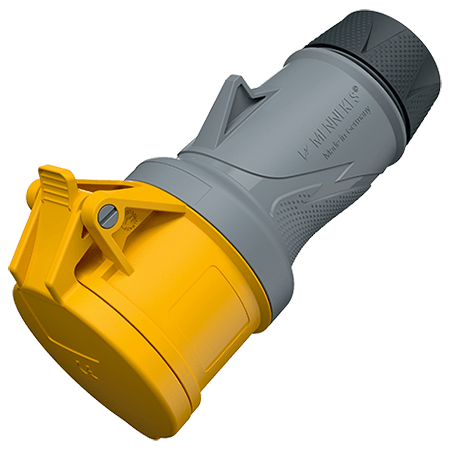

Connector PowerTOP® Xtra R with ErgoCONTACT 14582

All versions of the PowerTOP® Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT® inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP® Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.

  • screw connection technology ErgoCONTACT
  • X-CONTACT®
  • ergonomic enclosure design with nubbed grip zones
  • highly heat resistant contact carrier
  • nickel plated contacts
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • the PowerTOP® Xtra R connector replaces the PowerTOP® connector 3974
  • Part no.14582
  • EAN4015394296652
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP® Xtra R with ErgoCONTACT 14582

Ampere 32 A
Poles 5 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact nickel plated contacts
highly heat resistant contact carrier
X-CONTACT
Protection type IP54
Weight 434 g
Certifications VDE
CB Zertifikat

Videos

Connector PowerTOP® Xtra R with ErgoCONTACT 14582

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Connector PowerTOP® Xtra R with ErgoCONTACT 14582

Appropriate products

Connector PowerTOP® Xtra R with ErgoCONTACT 14582 with IP54

MENNEKES Plug PowerTOP® Xtra R with ErgoCONTACT 13582

Plug PowerTOP® Xtra R with ErgoCONTACT

Part no. 13582

  • Protection type: IP54
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 110 V
  • Connection technology: Screw terminals, ErgoCONTACT®

Appropriate accessories

Connector PowerTOP® Xtra R with ErgoCONTACT 14582

MENNEKES Set cable gland PowerTOP® Xtra G 42932

Set cable gland PowerTOP® Xtra G

Part no. 42932

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP® Xtra plugs and connetcor in 32 A
