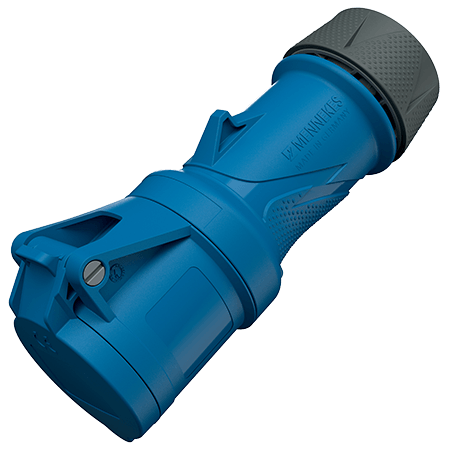

Connector PowerTOP® Xtra S with SafeCONTACT 14521

All versions of the PowerTOP® Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP® Xtra connector has IP54 protection class and is therefore impervious to both water spray and dust.

Poles
Voltage
Clock position
  • screwless, with insulation displacement technology
  • X-CONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • the PowerTOP® Xtra S connector replaces the StarTOP connector 980
  • Part no.14521
  • EAN4015394293941
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector PowerTOP® Xtra S with SafeCONTACT 14521

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - SafeCONTACT
Contact X-CONTACT®
Protection type IP 54
Weight 188 g
Declaration of Conformity VDE
EAC
CQC

Appropriate products

Connector PowerTOP® Xtra S with SafeCONTACT 14521 with IP 54

Plug PowerTOP® Xtra S with SafeCONTACT

Part no. 13521

  • Schutzart: IP 54
  • Ampere: 16 A
  • Pole: 3 p
  • Volt: 230 V
  • Anschlusstechnik: Screwless - SafeCONTACT
