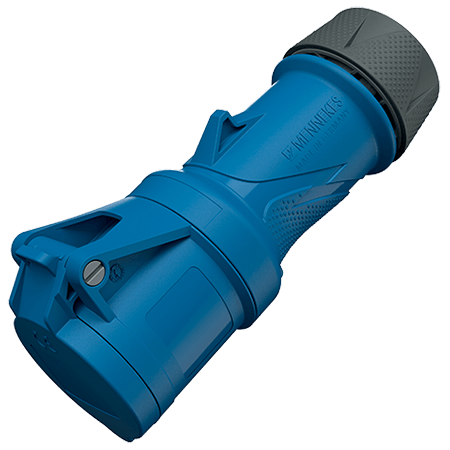

Connector PowerTOP® Xtra with ErgoCONTACT 14513

All versions of the PowerTOP® Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP® Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.

Ampere 32 A
Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • the PowerTOP® Xtra connector replaces the ProTOP connector 122
  • Part no.14513
  • EAN4015394296751
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector PowerTOP® Xtra with ErgoCONTACT 14513

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact X-CONTACT®
Protection type IP 54
Weight 370 g
Declaration of Conformity VDE
EAC
