Great Britain EN

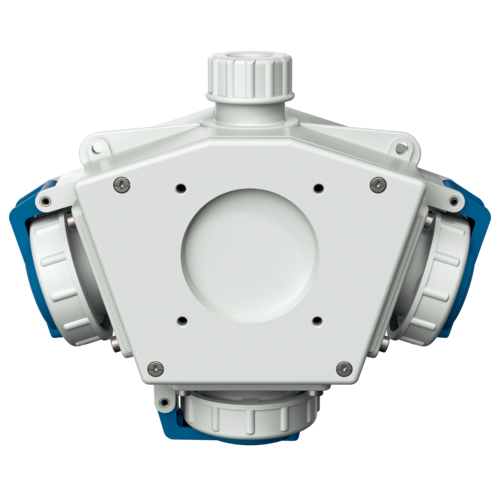

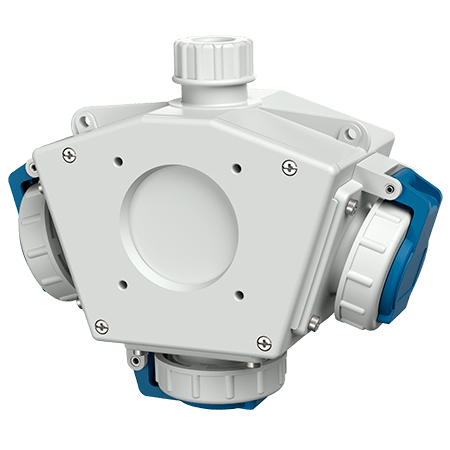

DELTA-BOX combination unit 10860

SCHUKO® 16 A, 230 V

with cable grip
pre-wired for installation

with internal strain relief and installed hanging hook
enclosure and insert made of AMAPLAST

Part no.10860
EAN4015394035671
Std. Pack. 5 Qty.

Technical specifications

DELTA-BOX combination unit 10860

SCHUKO® 16 A, 230 V	3
Connection/feeder cable	for 1 cable up to 3 x 10 mm²
Protection type	IP 68
Enclosure material	Plastic
Weight	795 g
Declaration of Conformity	EAC
Storage receptacle combination	D

Datasheets & Downloads

DELTA-BOX combination unit 10860

Product info DELTA-BOX combination unit 10860 PDF, 118 KB

CAD data STP DELTA-BOX combination unit 10860 ZIP, 2 MB

CAD data 3D DWG DELTA-BOX combination unit 10860 ZIP, 6 MB

Dimensional drawing portrait DELTA-BOX combination unit 10860 PNG, 1 KB

Dimensional drawing landscape format DELTA-BOX combination unit 10860 PNG, 1 KB

Instructions

Mounting instructions DELTA-BOX combination unit 10860 PDF, 1 MB

Appropriate accessories

DELTA-BOX combination unit 10860

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441

Blanking flange

Part no. 41419

to close unused apertures, grey

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile combination units
