MENNEKES
MENNEKES Panel mounted inlet 2692

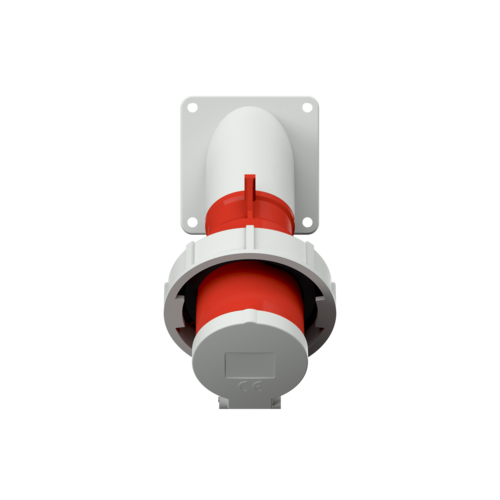

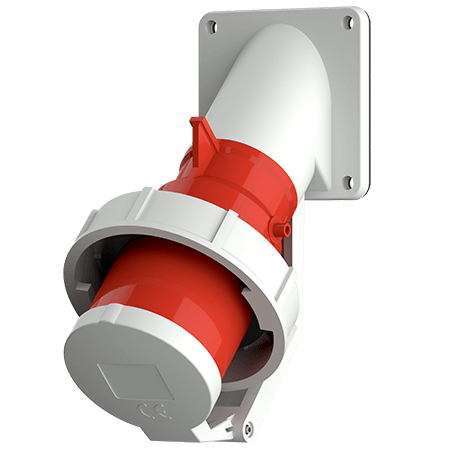

MENNEKES Panel mounted inlet 2692 images3d

Panel mounted inlet 2692

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • high heat resistant contact carrier
  • nickel plated contacts
  • with hinged lid
  • Part no.2692
  • EAN4015394016120
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 2692

Ampere 32 A
Poles 4 p
Voltage 400-440 V
Clock position 3 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Weight 354 g
Certifications EAC

Directives

Panel mounted inlet 2692

Appropriate accessories

Panel mounted inlet 2692

MENNEKES Protective cover 40841

Protective cover

Part no. 40841

for watertight plugs, wall mounted and panel mounted inlets

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
