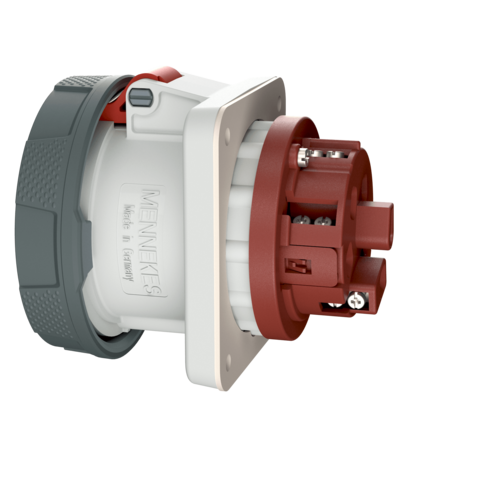

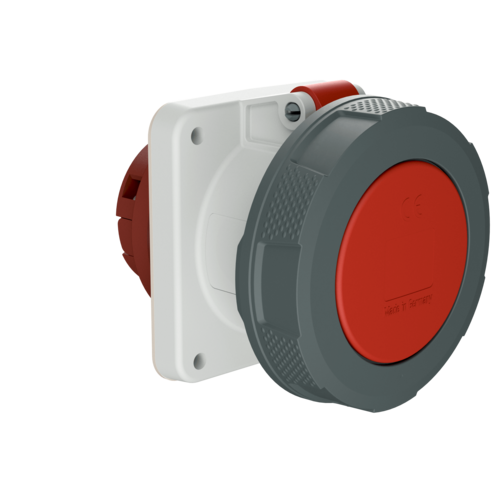

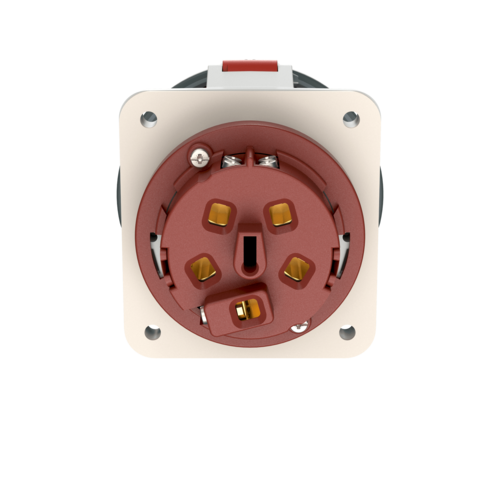

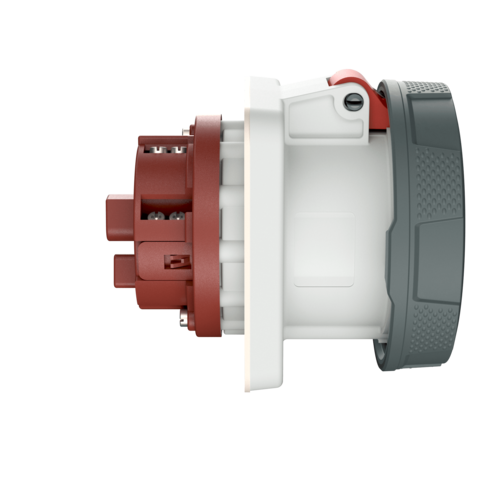

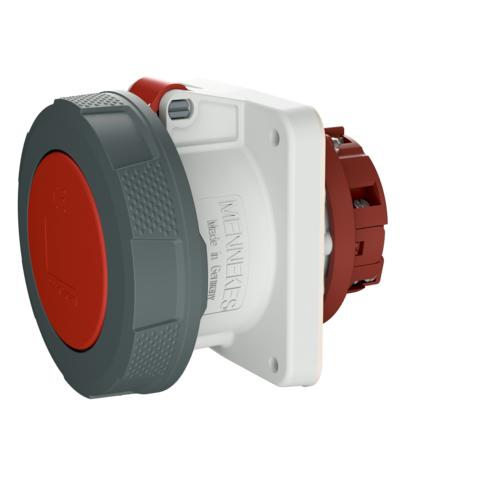

Panel mounted socket 1128A

Please accept marketing-cookies to watch this video.

Video varieties
Poles
Voltage
Clock position
  • straight
  • products with pilot contact on request
  • Part no.1128A
  • EAN4015394007579
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1128A

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Flange 107x100 mm
Fixing hole 85x77 mm
Weight 664 g
Declaration of Conformity VDE
EAC
CQC

Frequently asked questions about the product

What is the difference between articles 1128A and 1128P?

Articles 1128A and 1128P (Panel mounted socket with screw contact) are almost identical products. However, article 1128P has a pilot contact that can be used for additional signalling/controlling.
