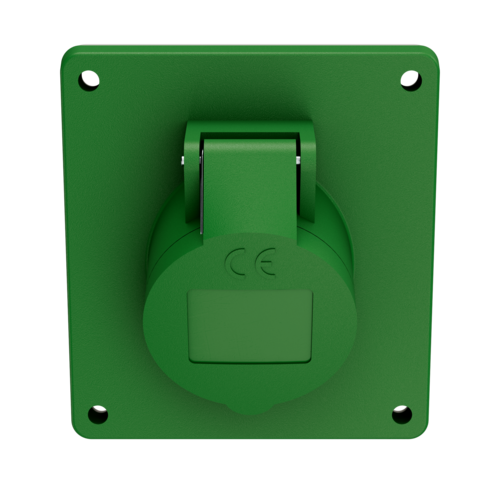

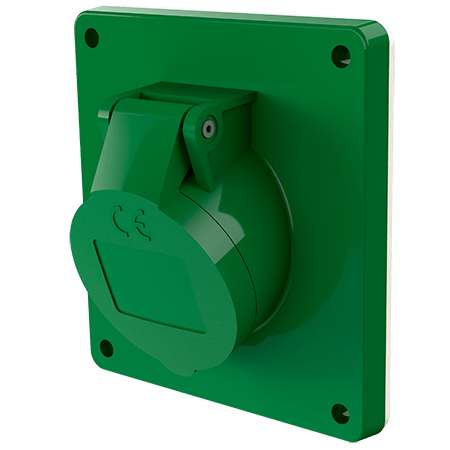

MENNEKES Panel mounted socket 2837
MENNEKES Panel mounted socket 2837 images3d

Panel mounted socket 2837

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.2837
  • EAN4015394016670
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 2837

Ampere 32 A
Poles 3 p
Voltage 20-25, 40-50 V
Clock position 4 h
Hertz 100-200 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 170 g
Certifications EAC
CQC

Directives

Panel mounted socket 2837

Appropriate accessories

Panel mounted socket 2837

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
