Panel mounted socket 609

Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.609
  • EAN4015394004530
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

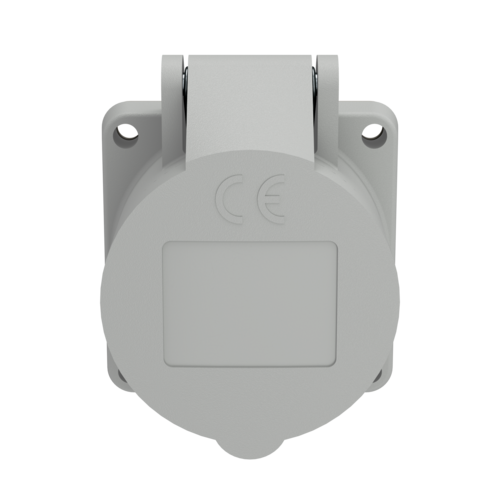

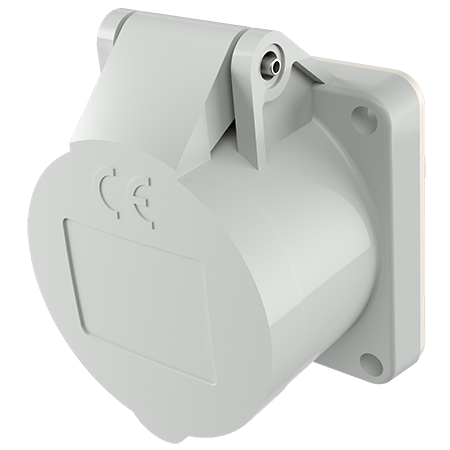

Panel mounted socket 609

Ampere 16 A
Poles 2 p
Voltage 50 V
Clock position 10 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 108 g
Declaration of Conformity EAC
CQC
