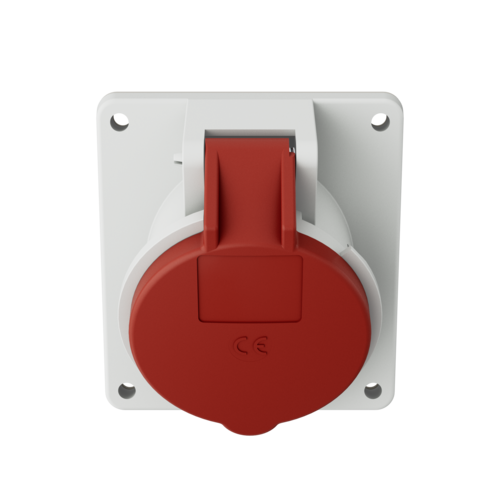

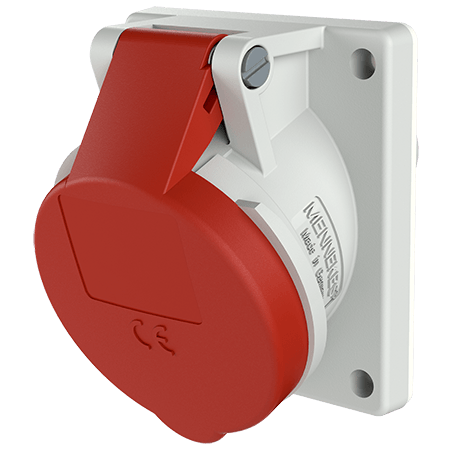

Panel mounted socket 740
Voltage
Clock position
- screw terminals
- highly heat resistant contact carrier
- nickel plated contacts
- 20° inclination
- sockets optional fitted with auxiliary contact
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Panel mounted socket 740
| Ampere | 32 A |
|---|---|
| Poles | 7 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP44 |
| Flange | 100x92 mm |
| Fixing hole | 85x77 mm |
| Inclination | 20 ° |
| Weight | 300 g |
| Certifications |
EAC CQC |
Appropriate accessories
Panel mounted socket 740
Frequently asked questions about the product
What do I use a 7-pin device for?
7-pin plugs and sockets can be used for any application that requires additional contacts. You can find our range of 7-pin products on pages 70, 71 & 72 of the UK catalogue. More information
