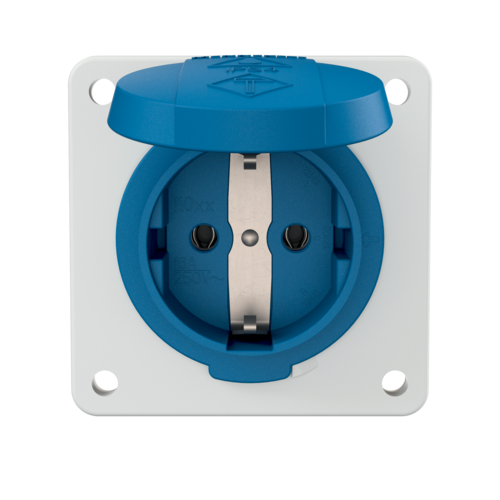

Panel mounted socket SCHUKO® 11031F

Ampere 16 A
  • for stationary use
  • with hinged lid
  • also suitable for cable ducts and flush mounted installation boxes
  • 3 screw terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11031F
  • EAN4015394259145
  • Std. Pack. 20
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket SCHUKO® 11031F

Ampere 16 A
Poles 3 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 54
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 60 g
Declaration of Conformity VDE

Appropriate accessories

Panel mounted socket SCHUKO® 11031F

Blanking flange

Part no. 41419

to close unused apertures, grey

Fixing frame

Part no. 19267000

for swift and safe fastening of panel mounted sockets
