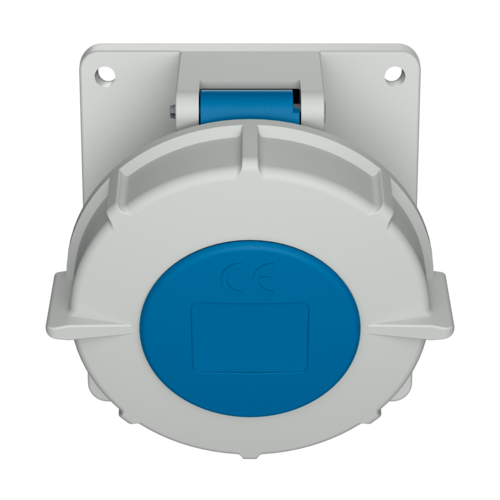

MENNEKES Panel mounted socket with TwinCONTACT 1804
MENNEKES Panel mounted socket with TwinCONTACT 1804 images3d

Panel mounted socket with TwinCONTACT 1804

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • sockets are designed for adding an auxiliary contact switch
  • Part no.1804
  • EAN4015394215127
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket with TwinCONTACT 1804

Ampere 32 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 280 g
Certifications EAC

Directives

Panel mounted socket with TwinCONTACT 1804

Appropriate accessories

Panel mounted socket with TwinCONTACT 1804

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
