MENNEKES Plug AM-TOP® 277

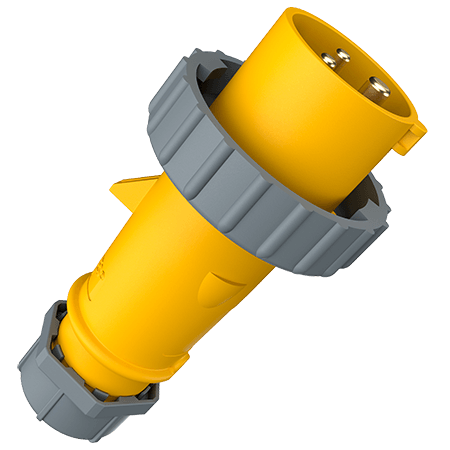

Plug AM-TOP® 277

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
single part body

cable gland and sealing
strain relief and protection against kinking

Part no.277
EAN4015394001898
Std. Pack. 10

Technical specifications

Plug AM-TOP® 277

Ampere	16 A
Poles	3 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP67
Weight	156 g
Certifications	VDE CQC

Dimensional drawing landscape format

Datasheets & Downloads

Plug AM-TOP® 277

Product infoPlug AM-TOP® 277 PDF, 150 KB

Manufacturer‘s declarationPlug AM-TOP® 277 PDF, 43 KB

CAD data STPPlug AM-TOP® 277 ZIP, 659 KB

CAD data 3D DWGPlug AM-TOP® 277 ZIP, 2 MB

Mounting instructionsPlug AM-TOP® 277 PDF, 2 MB

Dimensional drawing portraitPlug AM-TOP® 277 PNG, 90 KB

Dimensional drawing landscape formatPlug AM-TOP® 277 PNG, 91 KB
