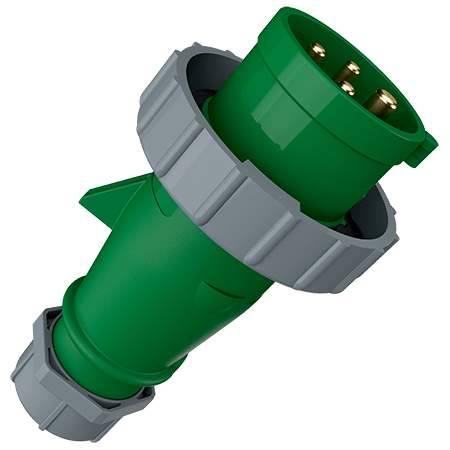

MENNEKES Plug AM-TOP® 284

Plug AM-TOP® 284

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.284
  • EAN4015394001966
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP® 284

Ampere 16 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 165 g
Certifications CQC

Datasheets & Downloads

Plug AM-TOP® 284

Product infoPlug AM-TOP® 284 PDF, 151 KB
Mounting instructionsPlug AM-TOP® 284 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP® 284 PNG, 90 KB
Dimensional drawing landscape formatPlug AM-TOP® 284 PNG, 91 KB

Directives

Plug AM-TOP® 284

REACh
RoHS

Appropriate accessories

Plug AM-TOP® 284

MENNEKES Protective cover 40778

Protective cover

Part no. 40778

for watertight plugs, wall mounted and panel mounted inlets 16 A, 4 p
