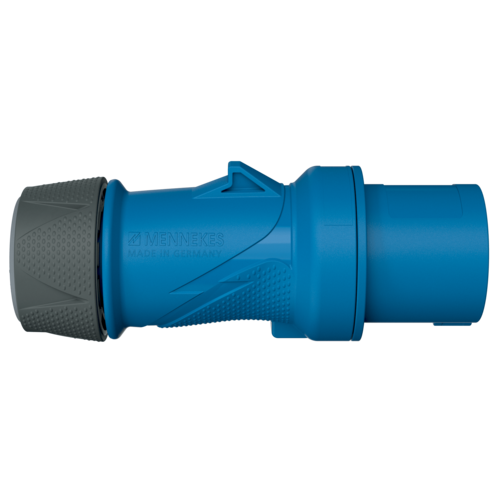

MENNEKES Plug PowerTOP® Xtra with ErgoCONTACT 13502

MENNEKES Plug PowerTOP® Xtra with ErgoCONTACT 13502 images3d

Please accept marketing-cookies to watch this video.

Plug PowerTOP® Xtra with ErgoCONTACT 13502

Across all versions and applications, PowerTOP® Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP® Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw connection technology ErgoCONTACT
ergonomic enclosure design with nubbed grip zones
rubberised cable gland with sealing
strain relief and protection against kinking

thread lock and safety slide
area for self-adhesive labels
the PowerTOP® Xtra plug replaces the ProTOP plug 148A

Part no.13502
EAN4015394291817
Std. Pack. 10 Qty.

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP® Xtra with ErgoCONTACT 13502

Ampere	16 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals, ErgoCONTACT®
Contact	standard
Protection type	IP54
Weight	170 g
Certifications	CB Zertifikat VDE EAC CQC

Dimensional drawing landscape format

Datasheets & Downloads

Plug PowerTOP® Xtra with ErgoCONTACT 13502

Product infoPlug PowerTOP® Xtra with ErgoCONTACT 13502 PDF, 295 KB

Manufacturer‘s declarationPlug PowerTOP® Xtra with ErgoCONTACT 13502 PDF, 51 KB

CAD data STPPlug PowerTOP® Xtra with ErgoCONTACT 13502 ZIP, 2 MB

CAD data 3D DWGPlug PowerTOP® Xtra with ErgoCONTACT 13502 ZIP, 3 MB

Mounting instructionsPlug PowerTOP® Xtra with ErgoCONTACT 13502 PDF, 2 MB

Dimensional drawing portraitPlug PowerTOP® Xtra with ErgoCONTACT 13502 PNG, 188 KB

Dimensional drawing landscape formatPlug PowerTOP® Xtra with ErgoCONTACT 13502 PNG, 338 KB
