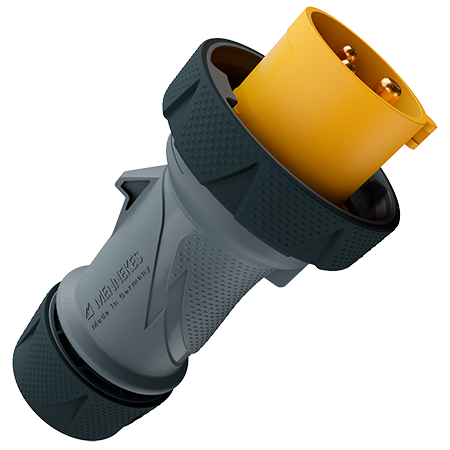

MENNEKES Plug PowerTOP® Xtra with ErgoCONTACT 13619
MENNEKES Plug PowerTOP® Xtra with ErgoCONTACT 13619 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP® Xtra with ErgoCONTACT 13619

Robust technology for harsh environmental conditions - the PowerTOP® Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The plugs in the PowerTOP® Xtra family fulfil protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high pressure cleaning.
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13619
  • EAN4015394308553
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP® Xtra with ErgoCONTACT 13619

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact standard
Protection type IP67 / IP69
Weight 200 g
Certifications VDE
CB Zertifikat

Videos

Plug PowerTOP® Xtra with ErgoCONTACT 13619

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Plug PowerTOP® Xtra with ErgoCONTACT 13619

Appropriate products

Plug PowerTOP® Xtra with ErgoCONTACT 13619 with IP67 / IP69

MENNEKES Connector PowerTOP® Xtra with ErgoCONTACT 14619

Connector PowerTOP® Xtra with ErgoCONTACT

Part no. 14619

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals, ErgoCONTACT®
MENNEKES Wall mounted socket DUOi 5612304G

Wall mounted socket DUOi

Part no. 5612304G

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
MENNEKES Panel mounted socket 1474

Panel mounted socket

Part no. 1474

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted socket 9300

Wall mounted socket

Part no. 9300

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals

Appropriate accessories

Plug PowerTOP® Xtra with ErgoCONTACT 13619

MENNEKES Set cable gland PowerTOP® Xtra G 42940

Set cable gland PowerTOP® Xtra G

Part no. 42940

rubberised cable gland , with protective grommet to prevent dirt from accumulating, suitable for PowerTOP® Xtra plugs and connetcor in 16 A
