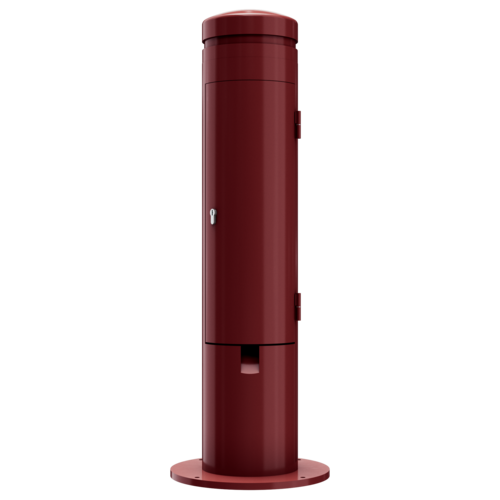

MENNEKES Power post 84335
MENNEKES Power post 84335 images3d

Power post 84335

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • from steel tube
  • wall thickness 4.0 mm
  • hot-dip galvanised
  • powder-coated
  • colour: red
  • hinged supply aperture
  • with safety lock

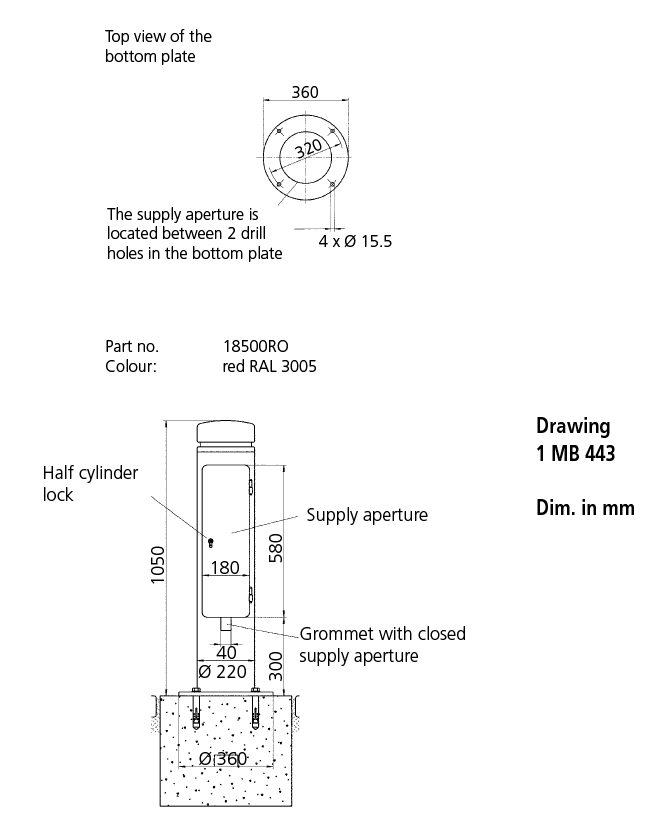

  • dimensions (H x Ø): 1050 x 220 mm (inside)
  • weight: approx. 45 kg
  • aperture at bottom: (H x W) 50 x 40 mm
  • fixing flange: Ø 360 mm
  • with 4 fixing holes 15.5 mm
  • for fixing to an existing fundament
  • Part no.84335
  • EAN4015394169918
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Power post 84335

CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Fusing
  • 1 MCB 16 A, 3 p, C
  • 1 MCB 16 A, 1 p, B
Connection/feeder cable
  • for 1 cable up to 5 x 6 mm²
Protection type IP44
Enclosure material Metal
Weight 40000 g
Height 1050 mm
Diameter 220 mm
Certifications EAC
Storage receptacle combination D

Directives

Power post 84335
