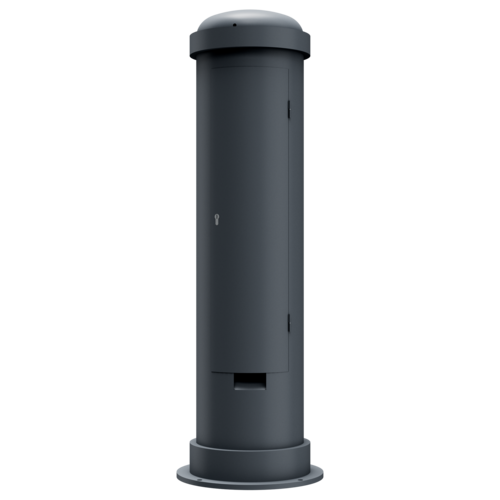

Power post enclosure 18502AZ

  • from steel tube
  • wall thickness 4.5 mm
  • hot-dip galvanised
  • wet painted
  • colour: anthracite
  • iron glitter DB 703
  • hinged supply aperture
  • with safety lock
  • dimensions (H x Ø): 1400 x 325 mm (inside)
  • weight: approx. 100 kg
  • aperture at bottom: (H x W) 50 x 100 mm
  • fixing flange: Ø 450 mm
  • with 4 fixing holes 15 mm
  • for fixing to an existing fundament
  • Part no.18502AZ
  • EAN4015394195931
  • Std. Pack. 1
