MENNEKES Wall mounted inlet 349
MENNEKES Wall mounted inlet 349 images3d

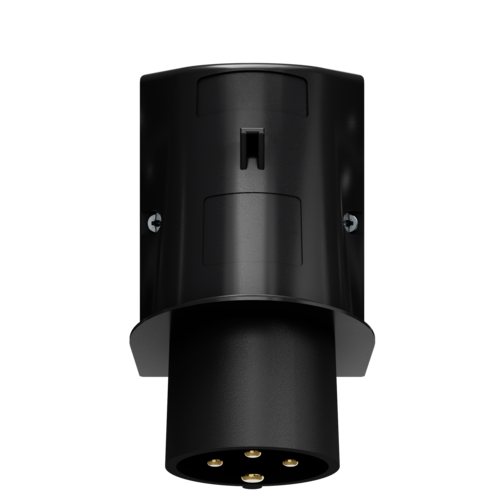

Wall mounted inlet 349

Poles
Voltage
Clock position
  • screw terminals
  • cable entry also possible on the back side
  • enclosure base with stamped recess for quick cutting out
  • Part no.349
  • EAN4015394002536
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted inlet 349

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 353 g
Certifications VDE
EAC
CQC

Directives

Wall mounted inlet 349

Appropriate accessories

Wall mounted inlet 349

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
