MENNEKES
MENNEKES Wall mounted socket 1837
MENNEKES Wall mounted socket 1837 images3d

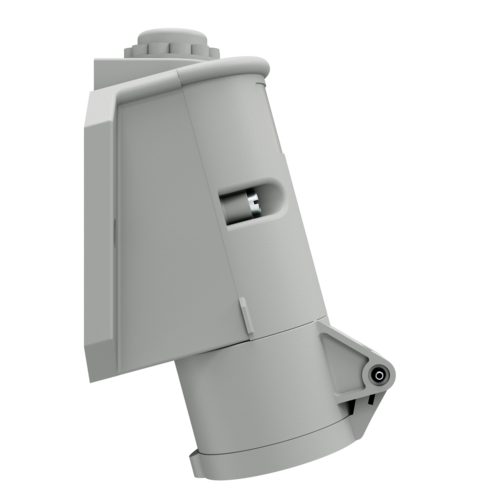

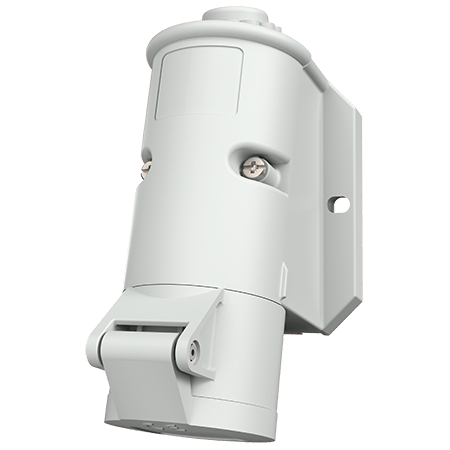

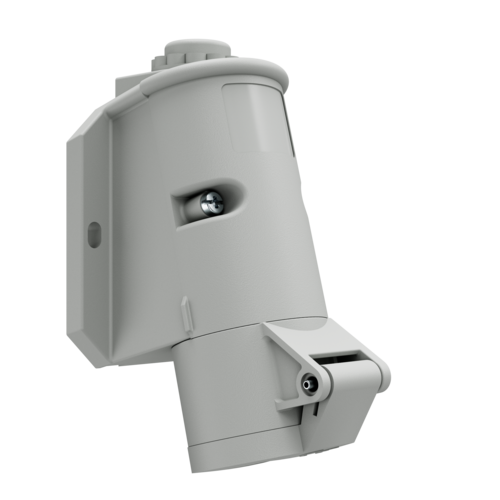

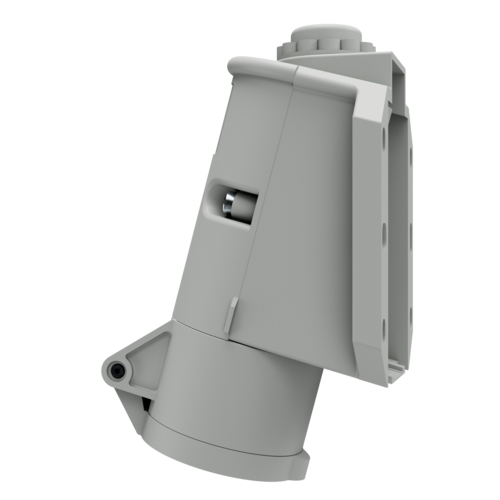

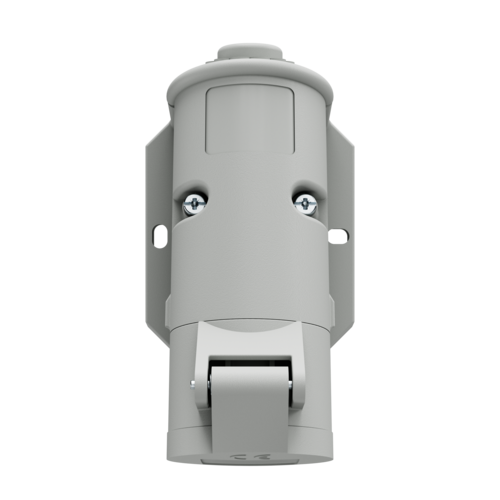

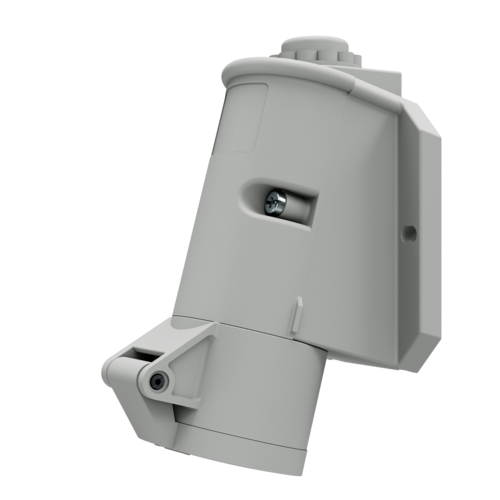

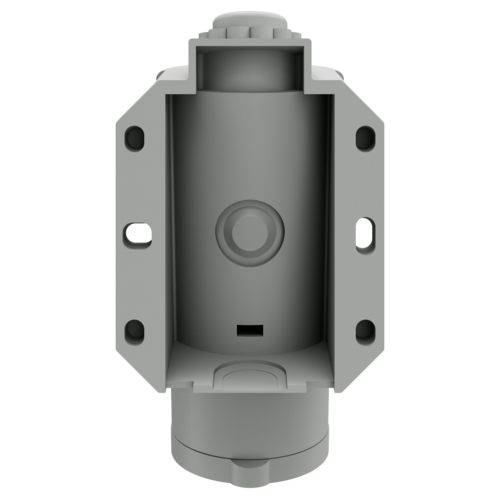

Wall mounted socket 1837

Poles
Voltage
Clock position
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the rear side
  • Part no.1837
  • EAN4015394012719
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 1837

Ampere 16 A
Poles 3 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 209 g
Certifications EAC
CQC

Directives

Wall mounted socket 1837

Appropriate accessories

Wall mounted socket 1837

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
