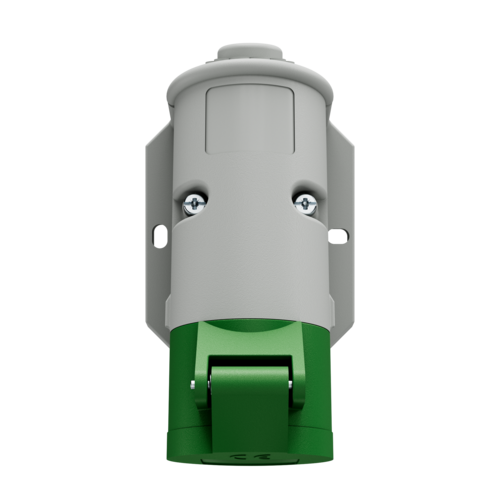

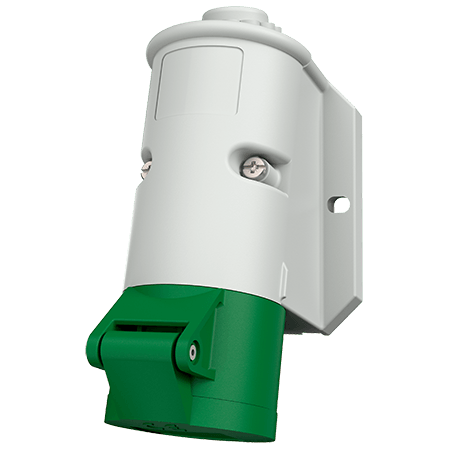

MENNEKES Wall mounted socket 1848
MENNEKES Wall mounted socket 1848 images3d

Wall mounted socket 1848

Poles
Voltage
Clock position
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the rear side
  • Part no.1848
  • EAN4015394012801
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 1848

Ampere 32 A
Poles 3 p
Voltage 20-25, 40-50 V
Clock position 4 h
Hertz 100-200 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 209 g
Certifications EAC
CQC

Directives

Wall mounted socket 1848

Appropriate accessories

Wall mounted socket 1848

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
