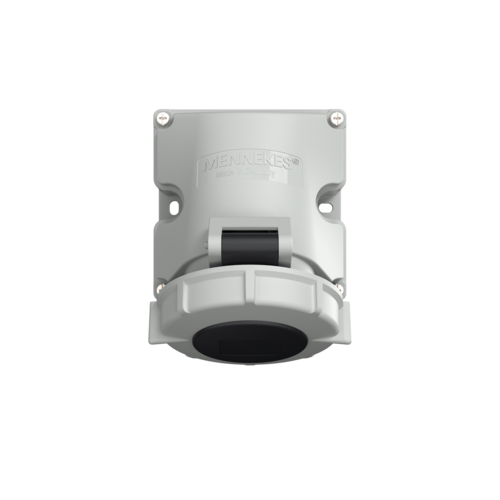

Wall mounted socket 9532
Voltage
Clock position
- screw terminals
- highly resistant to chemicals
- highly heat resistant contact carrier
- nickel plated contacts
- two external fixing points
- sockets are designed for adding an auxiliary contact switch
- enclosure base can be turned 180°
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Wall mounted socket 9532
| Ampere | 16 A |
|---|---|
| Poles | 7 p |
| Voltage | 500 V |
| Clock position | 7 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
nickel plated contacts highly heat resistant contact carrier |
| Protection type | IP67 |
| Enclosure material | Plastic, high resistance to chemicals / AMELAN |
| Weight | 438 g |
| Certifications | EAC |
Frequently asked questions about the product
What do I use a 7-pin device for?
7-pin plugs and sockets can be used for any application that requires additional contacts. You can find our range of 7-pin products on pages 70, 71 & 72 of the UK catalogue. More information
