MENNEKES

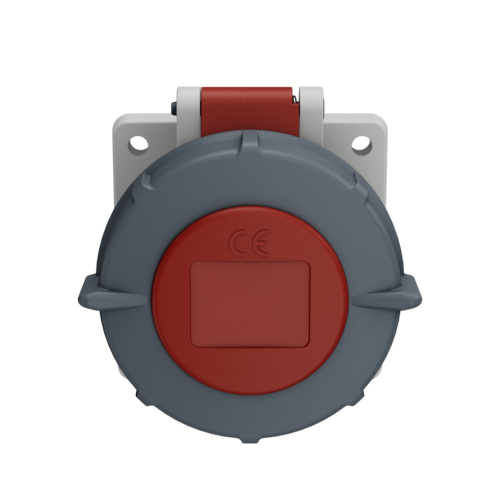

Panel mounted socket 2123A

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • Part no.2123A
  • EAN4015394013297
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted socket 2123A

Ampere 32 A
Poles 4 p
Voltage 400-440 V
Clock position 3 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Flange 85x75 mm
Fixing hole 60x60 mm
Weight 301 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate accessories

Panel mounted socket 2123A

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

more
