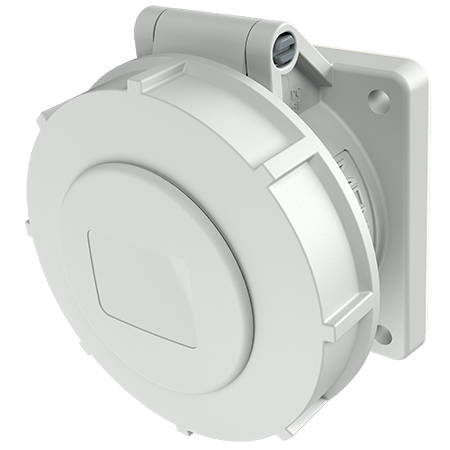

Panel mounted socket 2289A

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.2289A
  • EAN4015394014300
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 2289A

Ampere 16 A
Poles 3 p
Voltage 50-250 V
Clock position 3 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP 67
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 160 g
Declaration of Conformity EAC
CQC
