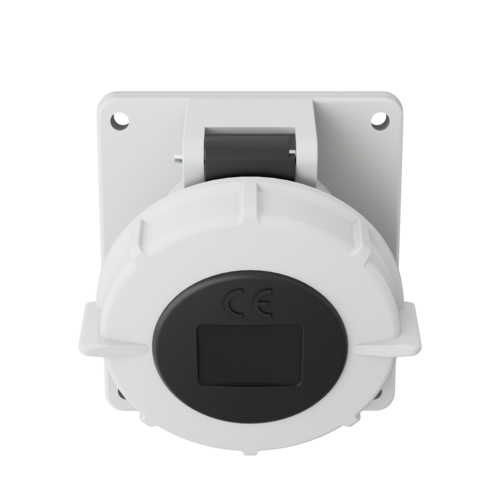

Panel mounted socket 2296
- screw terminals
- highly heat resistant contact carrier
- nickel plated contacts
- 20° inclination
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Panel mounted socket 2296
| Ampere | 16 A |
|---|---|
| Poles | 7 p |
| Voltage | 500 V |
| Clock position | 7 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP67 |
| Flange | 100x92 mm |
| Fixing hole | 85x77 mm |
| Inclination | 20 ° |
| Weight | 256 g |
| Certifications |
EAC CQC |
