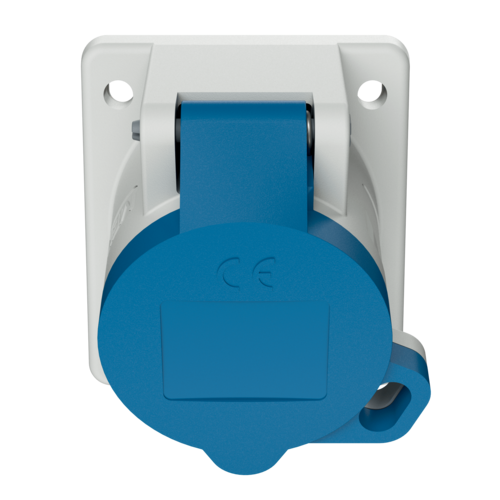

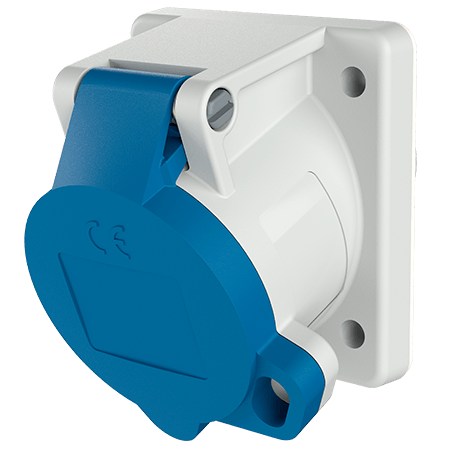

Panel mounted socket 851

MENNEKES 16 A panel mounted socket with proven screw contacts. Especially suitable for the camping sector.

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • with eyelet
  • flange: 68 x 62 mm
  • fixing hole spacing: 47 x 47 mm
  • 20°inclination
  • Part no.851
  • EAN4015394174967
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted socket 851

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 68x62 mm
Fixing hole 47x47 mm
Inclination 20 °
Weight 123 g
